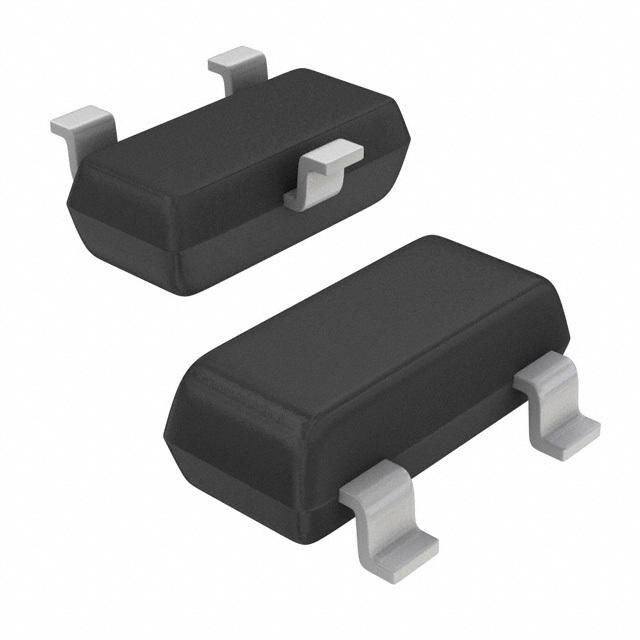

NTR4501NT1
- Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 80 mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 10V
Power Dissipation (Max) : 1.25W (Tj)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23-3 (TO-236)
Package / Case : TO-236-3, SC-59, SOT-23-3
