NDF06N62ZG
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 620V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.2 Ohm @ 3A, 10V
Vgs(th) (Max) @ Id : 4.5V @ 100μA
Gate Charge (Qg) (Max) @ Vgs : 32nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 923pF @ 25V
Power Dissipation (Max) : 31W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole

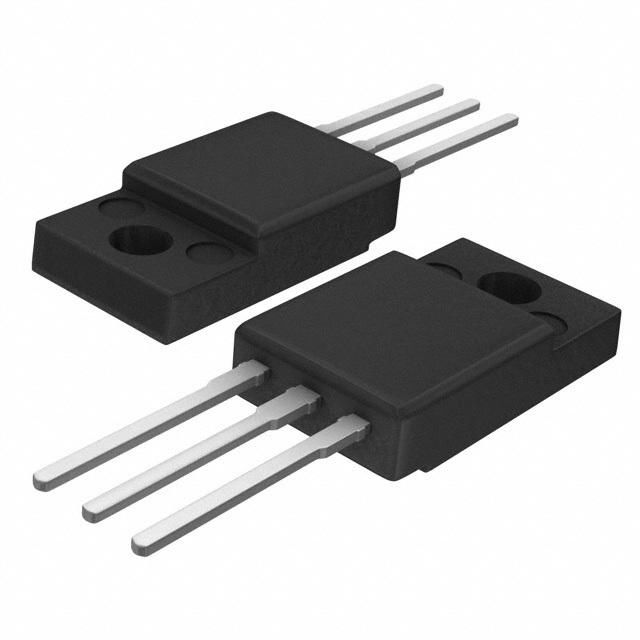

Supplier Device Package : TO-220FP
Package / Case : TO-220-3 Full Pack
