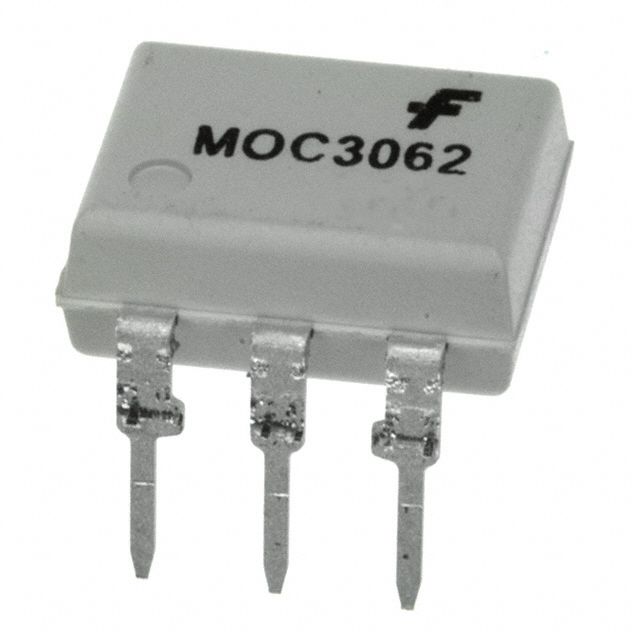

MOC3062M
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : Yes
Number of Channels : 1
Voltage - Isolation : 4170Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 600V/μs
Current - LED Trigger (Ift) (Max) : 10mA
Current - Hold (Ih) : 500μA (Typ)
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : UL
型號 |
品牌 | 封裝 | 批號 | 查看 | |
|---|---|---|---|---|---|
| KSH44H11ITU | ON | I-PAK | New | 詳細 | |
| 74LCX646WMX | ON | 24-SOP | New | 詳細 | |
| MC33074ADTBR2 | ON | 14-TSSOP | New | 詳細 | |
| DM74ALS563AWM | ON | 20-SOIC | New | 詳細 | |
| 1N747A_T50R | ON | DO-35 | New | 詳細 | |
| NTLJD3183CZTBG | ON | 6-WDFN (2x2) | New | 詳細 | |
| MPSA28RLRPG | ON | TO-92-3 | New | 詳細 | |
| NL27WZ04DFT2G | ON | SC-88/SC70-6/SOT-363 | New | 詳細 | |
| H11AV1FR2VM | ON | 6-SMD | New | 詳細 | |
| MBR20200CT | ON | TO-220AB | New | 詳細 | |
| MC78M24BTG | ON | TO-220AB | New | 詳細 | |
| 74LVQ08SJ | ON | 14-SOP | New | 詳細 | |
| MJE703 | ON | TO-225AA | New | 詳細 | |
| 1N964B | ON | DO-35 | New | 詳細 | |
| J305 | ON | TO-92-3 | New | 詳細 | |
| FDD8586 | ON | TO-252AA | New | 詳細 | |
| MCR22-2RL1G | ON | TO-92-3 | New | 詳細 | |
| FMB3946 | ON | SuperSOT?-6 | New | 詳細 | |
| LM2576T-15G | ON | TO-220-5 | New | 詳細 | |
| STK5C4-220J-1-E | ON | New | 詳細 |
