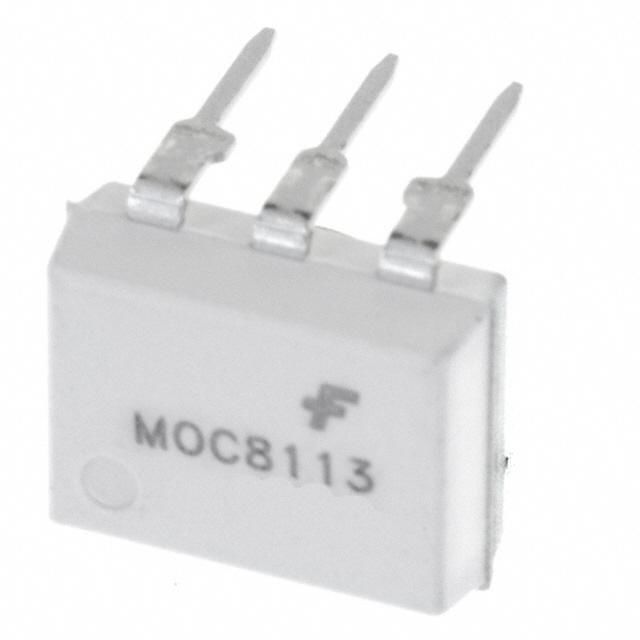

MOC8113M
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 7500Vpk
Current Transfer Ratio (Min) : 100% @ 10mA
Turn On / Turn Off Time (Typ) : 4.2μs, 23μs
Rise / Fall Time (Typ) : 3μs, 14μs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 90mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
