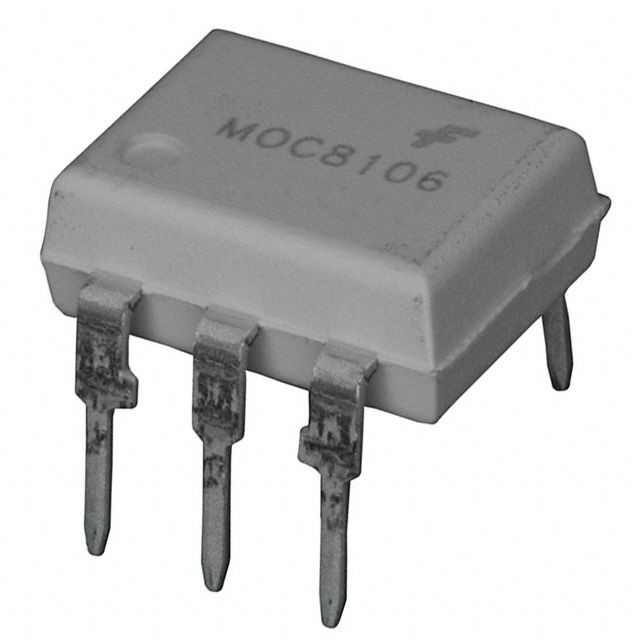

MOC8106M
- Manufacturer : ON Semiconductor
Packaging : Tube
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4170Vrms
Current Transfer Ratio (Min) : 50% @ 10mA
Current Transfer Ratio (Max) : 150% @ 10mA
Turn On / Turn Off Time (Typ) : 2μs, 3μs
Rise / Fall Time (Typ) : 4μs, 3.5μs (Max)
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
