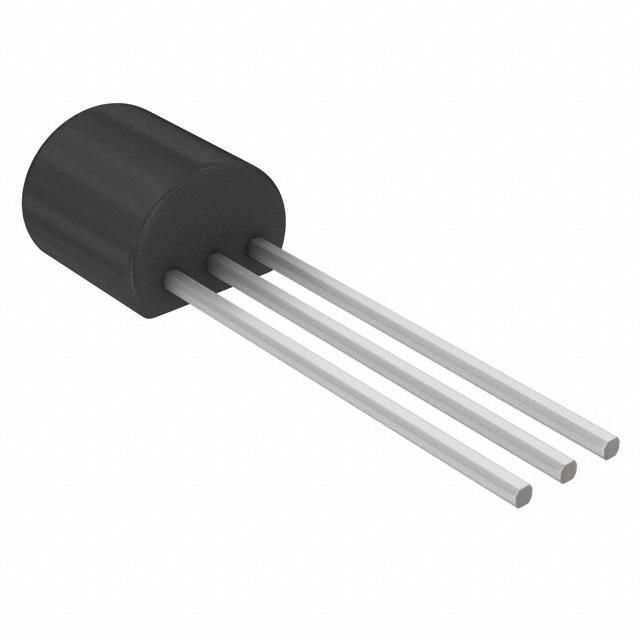

FQN1N50CBU
- Manufacturer : ON Semiconductor
Packaging : Bulk
Series : QFET?
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 380mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 6 Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id : 4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 6.4nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 195pF @ 25V
Power Dissipation (Max) : 890mW (Ta), 2.08W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
