FDC021N30
- Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench?
Part Status : Discontinued at Digi-Key
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 26 mOhm @ 6.1A, 10V
Vgs(th) (Max) @ Id : 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 10.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 710pF @ 15V
Power Dissipation (Max) : 700mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

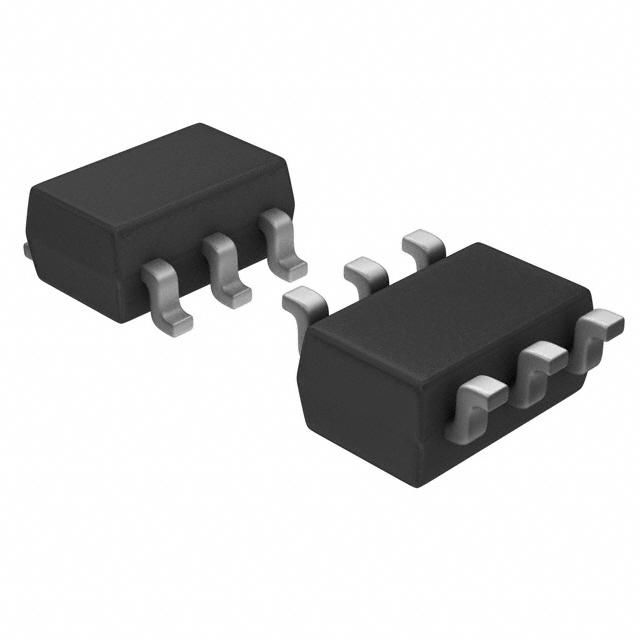

Supplier Device Package : SuperSOT?-6
Package / Case : SOT-23-6 Thin, TSOT-23-6
型號 |
品牌 | 封裝 | 批號 | 查看 | |
|---|---|---|---|---|---|
| NC7SZ27P6X | ON | SC-88 (SC-70-6) | New | 詳細 | |
| NBC12439AFNR2 | ON | 28-PLCC (11.51x11.51) | New | 詳細 | |
| SBC856BDW1T3G | ON | SC-88/SC70-6/SOT-363 | New | 詳細 | |
| BAT54_ND87Z | ON | SOT-23-3 (TO-236) | New | 詳細 | |
| MC74LVXT4052DT | ON | 16-TSSOP | New | 詳細 | |
| FMS7G20US60S | ON | 25PM-AA | New | 詳細 | |
| MPSA44RLRAG | ON | TO-92-3 | New | 詳細 | |
| NCP114AMX105TCG | ON | 4-UDFN (1.0x1.0) | New | 詳細 | |
| FDFMA3P029Z | ON | 6-MicroFET (2x2) | New | 詳細 | |
| MBR30H100CTH | ON | New | 詳細 | ||
| MC34166TVG | ON | TO-220-5 | New | 詳細 | |
| BAT54XV2T1 | ON | SOD-523 | New | 詳細 | |
| BZX84C5V6LT1 | ON | SOT-23-3 (TO-236) | New | 詳細 | |
| SG6105ADY | ON | 20-DIP | New | 詳細 | |
| FMBS5551 | ON | SuperSOT?-6 | New | 詳細 | |
| NCP1602ABASNT1G | ON | 6-TSOP | New | 詳細 | |
| NM27C256QE150 | ON | 28-CDIP | New | 詳細 | |
| EGF1C | ON | SMA (DO-214AC) | New | 詳細 | |
| BFL4026-1E | ON | TO-220F-3FS | New | 詳細 | |
| QSE973RCE3R0 | ON | New | 詳細 |
