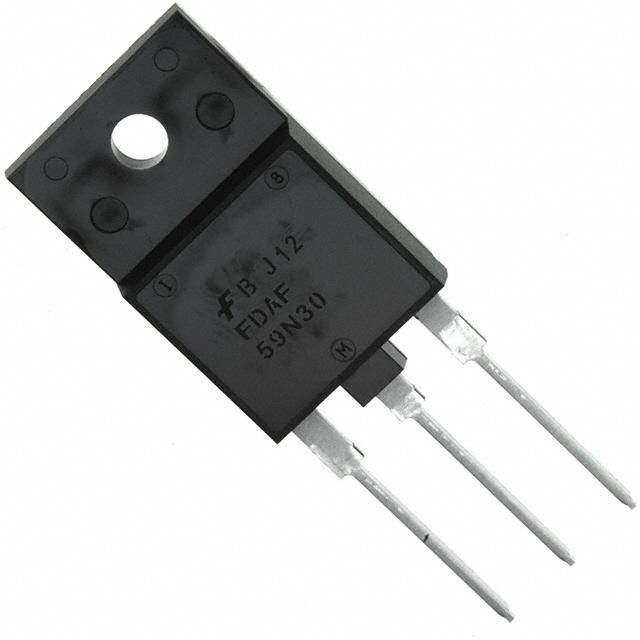

FDAF59N30
- Manufacturer : ON Semiconductor
Packaging : Tube
Series : UniFET?
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 300V
Current - Continuous Drain (Id) @ 25°C : 34A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 56 mOhm @ 17A, 10V
Vgs(th) (Max) @ Id : 5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs : 100nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 4670pF @ 25V
Power Dissipation (Max) : 161W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-3PF
Package / Case : TO-3P-3 Full Pack
型號 |
品牌 | 封裝 | 批號 | 查看 | |
|---|---|---|---|---|---|
| NCS2333MUTBG | ON | 8-uDFN (2x2) | New | 詳細 | |
| 1SMB5925BT3G | ON | SMB | New | 詳細 | |
| MC44608P75 | ON | 8-PDIP | New | 詳細 | |
| 74LCX541SJ | ON | 20-SOP | New | 詳細 | |
| 1SMB5940BT3 | ON | SMB | New | 詳細 | |
| 74F374SCX | ON | New | 詳細 | ||
| MM74HCT164N | ON | 14-PDIP | New | 詳細 | |
| NCV8560MNADJR2G | ON | 6-DFN (3x3) | New | 詳細 | |
| MSB92WT1G | ON | SC-70-3 (SOT323) | New | 詳細 | |
| FDS4480 | ON | 8-SOIC | New | 詳細 | |
| MMBV109LT3G | ON | SOT-23-3 (TO-236) | New | 詳細 | |
| LC709006V-TLM-E | ON | New | 詳細 | ||
| 2SK596S-C | ON | 3-SPA | New | 詳細 | |
| MAC8SN | ON | TO-220AB | New | 詳細 | |
| CAT660EVA-GT3 | ON | 8-SOIC | New | 詳細 | |
| H11A1SVM | ON | 6-SMD | New | 詳細 | |
| SZBZX84C9V1LT3G | ON | SOT-23-3 (TO-236) | New | 詳細 | |
| 1N5955BG | ON | Axial | New | 詳細 | |
| EFC2J017NUZTDG | ON | 6-WLCSP (1.77x3.05) | New | 詳細 | |
| NSPM2052MUT5G | ON | 3-UDFN (1.6x1) | New | 詳細 |
